Luxman L-30 Upgrade Kit Audio Capacitors. Electrolyte capacitors with the years grow old and lose their qualities, it is important for audio equipment if you want to enjoy quality sound! Recap / Renew the capacitors it is a complete set of all electrolytic capacitors. Nichicon KZ, FG, FW, KW. Kit includes 41 Nichicon audio capacitor. Luxman L-30 Upgrade Kit Audio Capacitors. Electrolyte capacitors with the years grow old and lose their qualities, it is important for audio equipment if you want to enjoy quality sound! Recap / Renew the capacitors it is a complete set of all electrolytic capacitors. Nichicon KZ, FG, FW, KW. Kit includes 41 Nichicon audio capacitor.
di invita | Crea Segnala abuso Invia ad un amico [+] Lista preferiti [+] Lista nera |
di invita | Crea Segnala abuso Invia ad un amico [+] Lista preferiti [+] Lista nera |
di invita | Crea Segnala abuso Invia ad un amico [+] Lista preferiti [+] Lista nera |

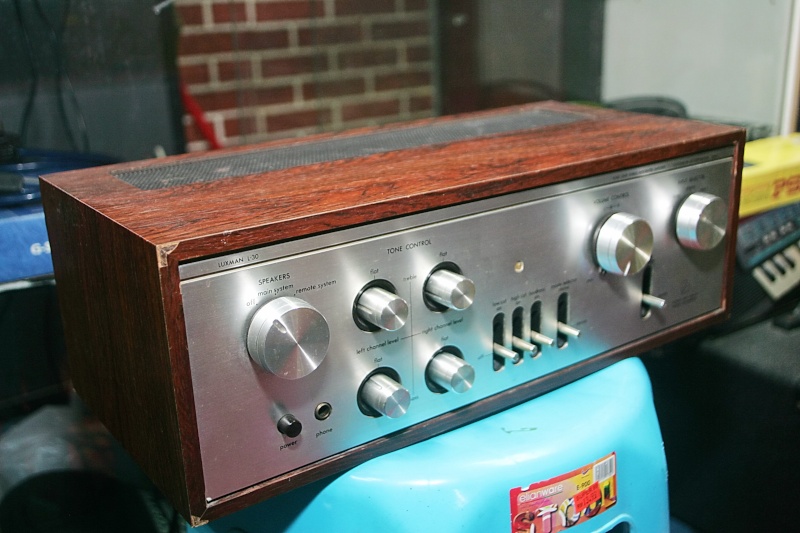

Stereo integrated amplifier (solid state) FRONT PANEL. Upper line (from left to right) : speakers selector switch (off, main, remote system), left and right treble controls, pilot lamp. Volume, input selector (aux 2, tuner, phono, aux 1). Lower line : power switch, left and right bass controls, low cut filter, high cut filter, loudness, mode selector switch (stereo / mono), tape monitor. BACK PANEL : ground, tape connector,main speakers, inputs: aux 1, phono, tuner, aux 2. Tape deck : rec-out, tape monitor. Remote speakers. Extra mains outlet. SPECIFICATIONSRMS output power 32 w Per channelsat 8 ohms -37 w 4 ohms T.H.D less than 0.05 % ( 8 ohms ) I.M.D les than 0.1 % ( 8 ohms ) Power Bandwidth : 10 – 50 Khz ( -36db 0.1 % ) Frequency response : 15 – 50 Khz (less than– 1 db ) Input sensitivity : Phono 2.6 mV Aux1 : 150 mV Aux2 : 150 mV Input impendance : Phono 5O Kohms Tuner 60 Kohms Monitor 60 Kohms SN Ratio : Phono more than 64 db Tuner more than83 db Aux 1,2more than 83 db Monitormore than 83 db Residual noise – 87db Tone control:Lux type NF tone control Filter High cut 7Khz – 6db/ oct Low cut 70Khz – 6db/oct Damping factor more than 90 ( 8 ohms ) Power consumption : 140 w 27 transistors,8 diodes, 2 Zener diodes, 1 LED Dimensions : 440 mm ( 17-3/8“) W – 160 mm (6-5/16“) H -225 mm (8-7/8 ») D. Weight : 7 Kgs (15.4 lbs) Years1976-78 Are available on request the service and the owner’s manual. Is available on request the abstract of testing performed by Italian hi-fi magazine Stereoplay (no.42,1977) E' disponibile a richiesta l'estratto della prova tecnica eseguita dalla rivista Stereoplay (n.42,1977) Torna alla mia collezione hi-fi |
Luxman L30 Price Target
'); //--> '); //--> '); //--> ');//-->');//-->
